ECMY-S
Double-spindle Power Turret CNC Lathe
Intelligent CNC Production Line Brochure
CNC Lathe Controller Software22
ECMY-S Series
Features
-

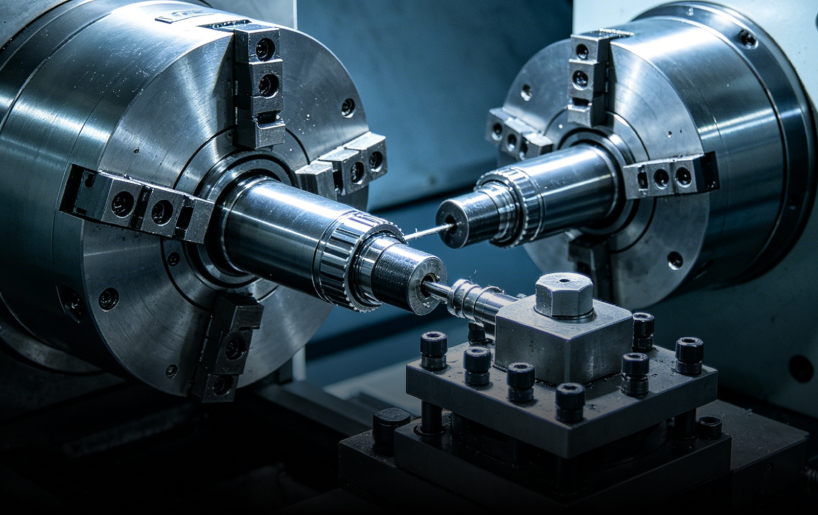

Opposed Dual-spindle Synergy System
Equipped with dual c-axis function. Main and sub spindlessupport independent drive, indexing and synchronousmotion, enabling automatic workpiece transfer forcontinuous front-to-back machining without secondaryclamping.
-
Multi-station Servo Power Turret
Equipped with dual c-axis function. Main and sub spindlessupport independent drive, indexing and synchronousmotion, enabling automatic workpiece transfer forcontinuous front-to-back machining without secondaryclamping.
-
Monolithic Cast Bed
Equipped with dual c-axis function. Main and sub spindlessupport independent drive, indexing and synchronousmotion, enabling automatic workpiece transfer forcontinuous front-to-back machining without secondaryclamping.
-
Opposed Dual-spindle Synergy System
Equipped with dual c-axis function. Main and sub spindlessupport independent drive, indexing and synchronousmotion, enabling automatic workpiece transfer forcontinuous front-to-back machining without secondaryclamping.
-
Multi-station Servo Power Turret
Equipped with dual c-axis function. Main and sub spindlessupport independent drive, indexing and synchronousmotion, enabling automatic workpiece transfer forcontinuous front-to-back machining without secondaryclamping.
-
Monolithic Cast Bed
Equipped with dual c-axis function. Main and sub spindlessupport independent drive, indexing and synchronousmotion, enabling automatic workpiece transfer forcontinuous front-to-back machining without secondaryclamping.
Product Specifications
| Specifications | Units | |
| Machining capacity | Max. swing over bed diameter | mm |
| Max. turning diameter | mm | |
| X-axis travel | mm | |
| Z-axis travel | mm | |
| Y-axis travel | mm | |
| Spindle | Spindle nose | - |
| Hydraulic chuck size | inch | |
| Spindle bore diameter | mm | |
| Max. bar | mm | |
| Spindle max speed | r/min | |
| Spindle motor power | KW | |
| Spindle drive power | Repeat positioning accuracy | mm |
| Max traverse speed | m/min | |
| Equipmentspecification | Overall dimensions(L*W*H) | mm |
| Spindle drive power | KW | |
| ECMY6-S | ECMY8-S |
| φ740 | |
| φ350 | |
| 200(400) | |
| 550 | |
| ±45 | |
| A2-6 | A2-8 |
| 8 | 10 |
| φ62 | φ86 |
| φ51 | φ71 |
| 3500 | 3000 |
| 7.5 | 11 |
| ±0.0025 | |
| 25 | |
| 3030×2045×2050 | |
| 5000 | 5000 |
Product Specifications
| Configuration items | |
| Spindle | High precision belt spindle |
| High precision motor spindle | |
| CNC System | SYNTEC |
| FANUC | |
| Driven Head/Turret | Edge milling driven head |
| Side driven head | |
| End driven head | |
| Optionalitem | Part catcher |
| Feeding device | |
| Chip conveyor | |
| Automatic manipulator | |
| ECMY6-S | ECMY8-S |
| ● | ● |
| ○ | ○ |
| ● | ● |
| ○ | ○ |
| ● | ● |
| ● | ● |
| ● | ● |
| ○ | ○ |
| ○ | ○ |
| ○ | ○ |
| ○ | ○ |
